Products > Display Monitors > ADP-1194

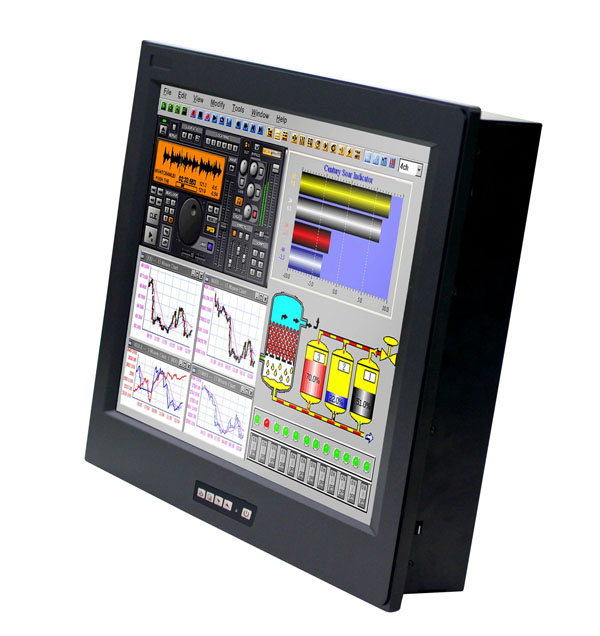

19" SXGA Industrial Display Monitor

Features:

19" SXGA Color TFT LCD
1280 (H) x 1024 (V), 300 cd/m2
Front Panel NEMA 4/IP 65 rating
Support Panel / VESA 75 mount
Resistive touch screen (optional)
Optional DVI, Video and S-Video input
AC 100~240V, optional DC 11~28V power input
Support wide-ranging resolutions from 640x480
to up to 1600 x 1200 with auto phase and auto
position
Specifications
Display Specifications
Display
19" SXGA color Active TFT Flat Panel dislay
Luminance
300 cd/m2
Viewing Angle
160/160 (H/V)
Resolution
1280 x 1024 (native mode), 256K colors
Backlight
50,000 hrs
Touch Screen
Analog resistive (Optional)
OSD Controls/Indicators
On the front side
Power Input
AC 100~240V, optional DC 11~28V
Mechanical Specifications
Construction
Steel chassis & Steel front bezel
Dimensions
467(W) x 64.7(D) x 379(H) mm
Mounting
Panel / VESA 75 mount
Environment Specifications
Operating Temperature
0 - 45 'C (32~122 'F)
Storage Temperature
-20 - 60 'C (-4 ~ 140 'F)
Relative Humidity
10-95% @40 'C Non-condensing, without touch screen
Vibration
1G peak, 5~500 Hz (Random)
Shock
15G peak acceleration (11 msec, duration)
Rating
NEMA 4/IP65
Certification
FCC, CE Class A certified
Data Sheet
Dimensions
