Products > Display Monitors > OPD-1196 (NEW)

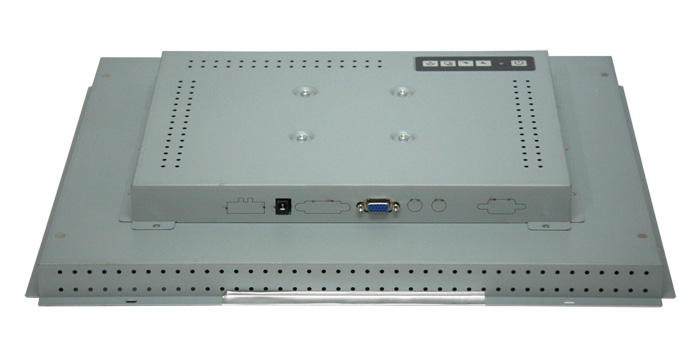

19" SXGA Open Frame Display Monitor

Features:

19" TFT SXGA LCD
1280(H)x1024(V), 250 cd/m2 　　　
OSD control on the back side　
Resistive touch screen (optional) 　
Optional DVI, Video and S-Video input　　
Backlight Lifetime: 50,000 hours　
Auto recognition of input signal
DC 12V, optional DC 11~28V power input
Specifications
Display Specifications
Display
19" Color Active TFT Flat Panel Display 　　
Luminance
250 cd/m2   　  　
Viewing Angle
160/170 °(H/V)  　
Resolution
1280 x 1024 (native mode), 262K colors  　 　
Backlight
50,000 hrs
Touch Screen
Analog resistive (optional)
OSD Controls/Indicators
On the back side; 1xDC power input, 1xVGA, optional: DVI,
S-Video, RCA, touch (RS-232 or USB)
Power Input
DC 12V,optional DC 11~28V
Mechanical Specifications
Construction
Steel chassis
Dimensions

Weight
3kgs
Environment Specifications
Operating Temperature
0 - 50℃ (32 - 122℉) 　
Storage Temperature
-20 - 60 ℃ (-4 ~ 140 ℉)  　
Relative Humidity
10 - 90% @40℃ Non-condensing, without touch screen
Vibration
1G peak, 5 - 500Hz (Random)
Shock
15G peak acceleration (11 msec, duration)  　
Rating
NEMA 4/IP65
Certification
FCC, CE Class A certified
Data Sheet
Dimensions
