Products > Display Monitors > OPD-1100

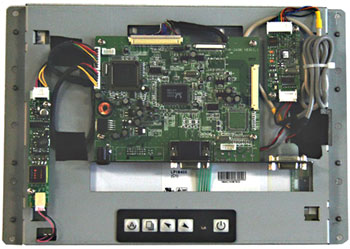

10.4" SVGA Open Frame Color TFT Display

Features:

10.4" Open Frame Color TFT Display Kit
800 x 600 (native mode), 250 cd/m2
Steel Chassis
Viewing angle: 120 degrees (H/V)
Backlight Lifetime: 20,000 hours
Auto Recognition of Input Signal
External Power Adapter (optional)
                   About Aplex | News & Events | Products | Application | Service & Support | Global | Home
Copyright © 2005 - 2007  Aplex America, Inc.  All rights reserved.
Use of this  site indicates you accept the Terms of Use.
Products
Industrial Panel Computer Company
Providing the latest industrial product information and solutions
Specifications
Display Specifications
Display
10.4" Color Active TFT Flat Panel Display
Luminance
250 cd/m2
Viewing Angle
120 degrees (R/L)
Resolution
800 x 600 (native mode), 262K colors
Backlight
20,000 hrs
Touch Screen
Antiglare resistive (optional)
OSD Controls/Indicators
Automatic Screen, Setup (OSD), Brightness, Contrast, Horizontal /
Vertical Position, Image Lock, Color Balance, Video Information,
Power On and Sync detected

Power Input
DC 12V only
Mechanical Specifications
Construction
Steel chassis & front panel
Dimensions
260(W) x 31(D) x 191.5(H)mm
Weight
0.9kgs (1.98 lbs)
Environment Specifications
Operating Temperature
0 - 50 'C (32~122 'F)
Storage Temperature
-20 - 60 'C (-4 ~ 140 'F)
Relative Humidity
10-90% @40 'C Non-condensing, without touch screen
Vibration
1G peak, 5~500 Hz (Random)
Shock
15G peak acceleration (11 msec, duration)
Rating
NEMA 4/IP65
Certification
FCC, CE Class A certified
Data Sheet
Dimensions
