Products > Display Monitors > OPD-1080

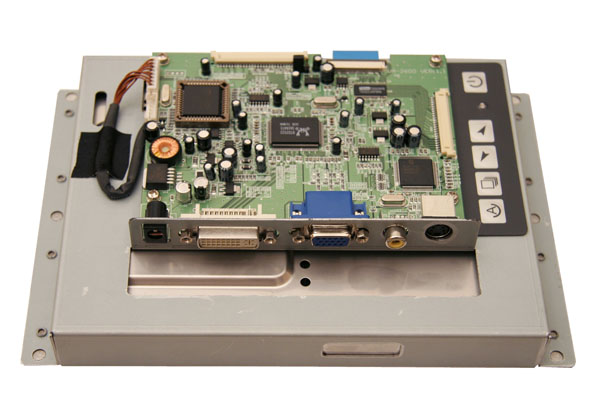

8" Open Frame Color TFT LCD Display Kit

Features:

8" Open Frame Color TFT Display Kit
800 x 600 (native mode), 400 cd/m2
Steel chassis
Viewing angle: 130 degrees (H/V)
Backlight life: 40,000 hours
                   About Aplex | News & Events | Products | Application | Service & Support | Global | Home
Copyright © 2005 - 2007  Aplex America, Inc.  All rights reserved.
Use of this  site indicates you accept the Terms of Use.
Products
Industrial Panel Computer Company
Providing the latest industrial product information and solutions
Specifications
Display Specifications
Display
8" Color Active TFT Flat Panel Display
Luminance
400 cd/m2
Viewing Angle
130 (H/V)
Resolution
800 x 600 (native mode), 262K colors
Backlight
CCFL 2 tubes, 40,000 hrs
Touch Screen
Resistive Antiglare (Optional)
OSD Controls/Indicators
Automatic Screen, Setup (OSD), Brightness, Contrast, Horizontal /
Vertical Position, Image Lock, Color Balance, Video Information,
Power On and Sync detected

Power Input
DC 12V only
Mechanical Specifications
Construction
Steel chassis & front panel
Dimensions
219.5(W) x 44.5(D) x 144.5(H)mm


Environment Specifications
Operating Temperature
0 - 50 'C (32~122 'F)
Storage Temperature
-20 - 60 'C (-4 ~ 140 'F)
Relative Humidity
10-90% @40 'C Non-condensing, without touch screen
Vibration
1G peak, 5~500 Hz (Random)
Shock
15G peak acceleration (11 msec, duration)
Rating
NEMA 4/IP65
Certification
FCC, CE Class A certified
Data Sheet
Dimensions
