Products > APC-3915

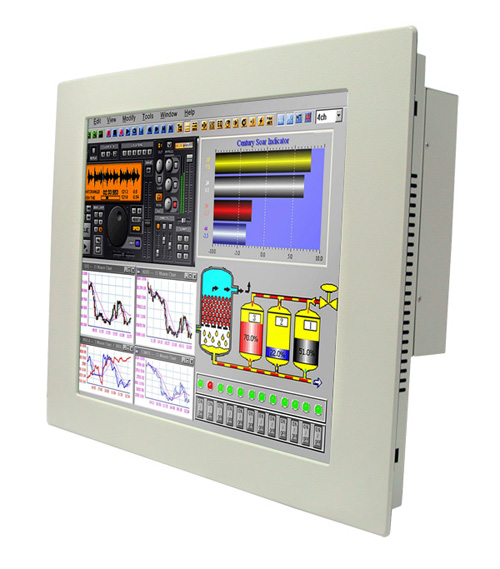

19" TFT LCD Core 2 Duo Panel PC

Features:

Socket 478 Intel Core 2 Duo 2GHz CPU
NEMA 4/IP 65 compliant front bezel
Resistive touch screen (optional)
2 x DDR2 DIMM socket, up to 4GB
2 x PCI expansion slots
Space for one 2.5" HDD and one CF slot (optional
1 x slim CD-ROM / DVD Combo)
Optional stainless steel front bezel (15"/17"/19")
Support Panel mount
AC universal 100~240V or DC 11~28V wide range
power input
                 About Aplex | News & Events | Products | Application | Service & Support | Global | Home
Copyright © 2005 - 2007  Aplex America, Inc.  All rights reserved.
Use of this  site indicates you accept the Terms of Use.
Products
Industrial Panel Computer Company
Providing the latest industrial product information and solutions
Specifications
System Specifications
CPU
Socket 478 Intel Core 2 Duo 2 GHz
Serial ports
1 x COM 1 : RS-232
Storage
Space for 1 x 2.5" HDD and 1 x CF slot (optional 1 x slim CD-ROM /
DVD Combo)
Memory
2 x DDR DIMM socket , up to 4GB
USB ports
4 x USB 2.0 ports
LAN
2 x LAN
I/O ports
1 x AC 97 codec with Line-in/Line-out/Mic, 1 x VGA, 1 x PS/2
keyboard & mouse , 2 x PCI slot
Resolution
1280x1024
LCD
19" SXGA
Backlight Lifetime
50,000hrs
Luminance (cd/m2)
250
Touch
Resistive (optional)
Fanless / Fan
Fan
Data Sheet
Dimensions
Mechanical Specifications
Construction
Heavy-duty steel chassis, Stainless Steel front bezel (optional for
15"/17"/19")
Mounting
Panel mount
Operating Temp.
0 - 50 C
Storage Temp.
-20 - 60C
Power Input
AC universal 100~240V or DC 11~28V wide range power input
DimensionsShock
484(W) x 400(H) x 139.3(D)mm
Certifications
