Products > APC-3911

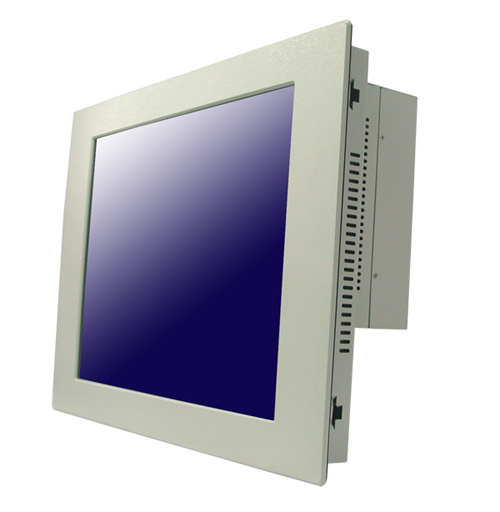

19" TFT LCD Panel PC

Features:

Intel Celeron 2.4GHz up to Pentium 4 2.8GHz CPU
NEMA 4/IP 65 compliant front bezel
2 x PCI expansion slots
4 x COM ports and 4 x USB 2.0 ports
Space for 2.5" HDD and slim CD-ROM
Resistive touch screen (optional)
Support Panel mount
AC 100~240V wide-range power input
Optional stainless steel front bezel
(3511/3711/3911)
Specifications
System Specifications
CPU
Intel Celeron 2.4GHz up to Pentium 4 (2GHz up to 2.8GHz)
Serial ports
4 x COM ports, COM4 reserved for Touch Screen
Storage
Space for 1 x 2.5" HDD and 1 x slim CD-ROM
Memory
up to 1GB DDR SDRAM
USB ports
4 x USB 2.0 ports
LAN
Realtek 8100BL LAN Controller (10/100Mb)
I/O ports
1xAudio Mic, Line-in , Line-out
Resolution
1280x1024
LCD
19" SXGA
Backlight Lifetime
50,000hrs
Luminance (cd/m2)
300
LPT
1 parallel port supporting SPP/EPP/ECP parallel mode
Fanless / Fan
Fan
Data Sheet
Dimensions
Mechanical Specifications
Construction
Heavy-duty steel chassis, Stainless steel front bezel (optional for
15"/17"/19")
Mounting Method/Ratings
VESA 75 / NEMA 4/ IP 65
Operating Temp.
0 - 50 C
Storage Temp.
-20C - 60C
Relative Humidty
5-85% @40 C (non-condensing)
Vibration
5-500Hz, 1G RMS random vibration
Shock
10G acceleration peak to peak (11ms)
Certifications
CE and FCC class A
Power Input
AC 100~240V
DimensionsShock
484(W) x 400(H) x 139.3(D)mm
Weight
