Products > APC-3787 (NEW)

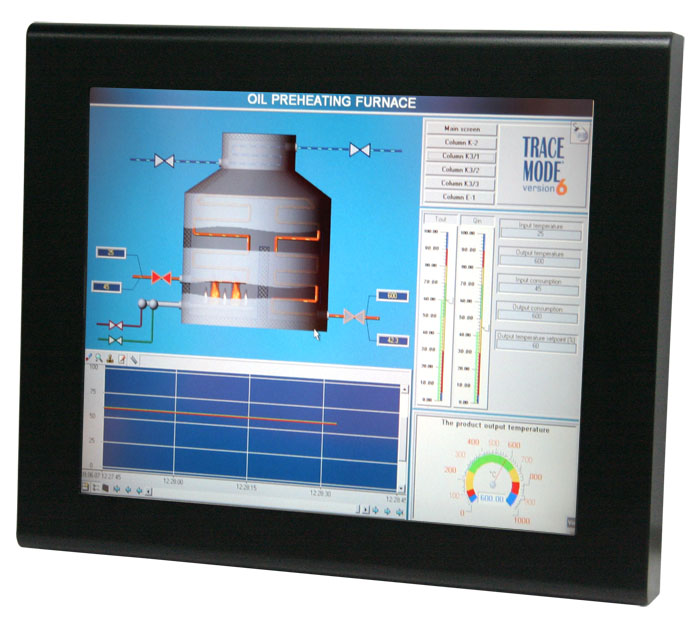

17" Ultra slim Celeron M Fanless Panel PC

Features:

Ultra slim & fanless design
Supports Intel Celeron M 1GHz up to 1.6GHz
IP 65 Compliant except I/O side
Withstand vibration and rest-proof
Fanless and low-power consumption
Resistive touch screen (optional)
Wireless 802.11g LAN (optional)
Support VESA 75 mount
                   About Aplex | News & Events | Products | Application | Service & Support | Global | Home
Copyright © 2005 - 2007  Aplex America, Inc.  All rights reserved.
Use of this  site indicates you accept the
Terms of Use.
Products
Industrial Panel Computer Company
Providing the latest industrial product information and solutions
Specifications
System Specifications
CPU
Intel Celeron M 1GHz up to 1.6GHz
Serial ports
2 x COM port (COM1:RS-232, COM2:RS-232/422/485)
Storage
Space for 1x2.5" HDD and 1x CF socket or PCMCIA (optional)
Memory
200 pin-DDR SO DIMM up to 1GB
USB ports
2 x USB 2.0
LAN
1 x Ethernet port (10/100MB)
I/O ports
1 x Audio, 1 x PS/2 keyboard & mouse ports, 1 x VGA
Resolution
1280x1024
LCD
17" SXGA
Backlight Lifetime
50,000hrs
Luminance (cd/m2)
300
Expansion
MiniPCI slot x 1 , optional PCMCIA
Fanless / Fan
Fanless
Mechanical Specifications
Construction
Black color of steel enclosure
Mounting Method/Ratings
VESA 75 / NEMA 4/ IP 65
Operating Temp.
0 - 50 C
Certifications
CE and FCC class A
Power Input
DC 11~28V
DimensionsShock
432(W) x 358(H) x 67.5(D)mm
Weight
8.57kgs
Data Sheet
Dimensions
