Products > APC-3786 (NEW)

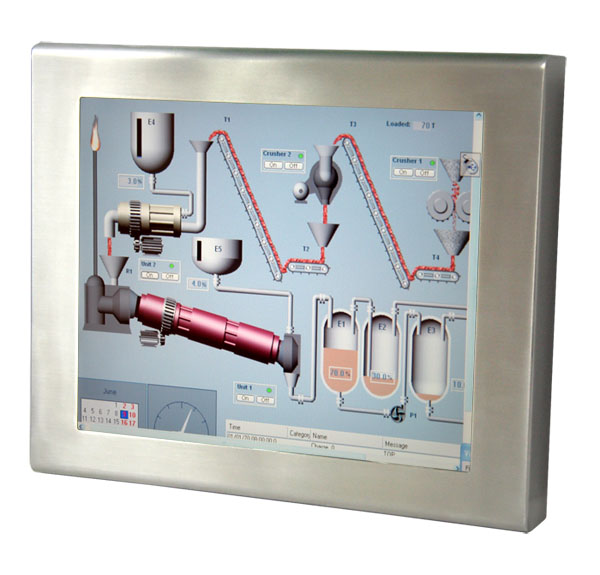

17" Ultra Slim Celeron M Stainless Steel
Fanless Panel PC

Features:

Ultra slim, sealed stainless steel enclosure
Supports Intel Celeron M 1GHz up to 1.6GHz
IP 65 Compliant except I/O side
Withstand vibration and rest-proof
Fanless and low-power consumption
Resistive touch screen (optional)
Wireless 802.11g LAN (optional)
Support VESA 75 mount
Specifications
System Specifications
CPU
Intel Celeron M 1GHz up to 1.6GHz
Serial ports
2 x COM port (COM1:RS-232, COM2:RS-232/422/485)
Storage
Space for 1x2.5" HDD and 1x CF socket or PCMCIA (optional)
Memory
200 pin-DDR SO DIMM up to 1GB
USB ports
2 x USB 2.0
LAN
1 x Ethernet port (10/100MB)
I/O ports
1 x Audio, 1 x PS/2 keyboard & mouse ports, 1 x VGA
Resolution
1280x1024
LCD
17" SXGA
Backlight Lifetime
50,000hrs
Luminance (cd/m2)
300
Expansion
MiniPCI slot x 1 , optional PCMCIA
Fanless / Fan
Fanless
Mechanical Specifications
Construction
Stainless steel enclosure
Mounting Method/Ratings
VESA 75 / NEMA 4/ IP 65
Operating Temp.

Certifications
CE and FCC class A
Power Input
DC 11~28V
DimensionsShock
432(W) x 358(H) x 67.5(D) mm
Weight
8.57kgs
Data Sheet
