Products > APC-3581 (NEW)

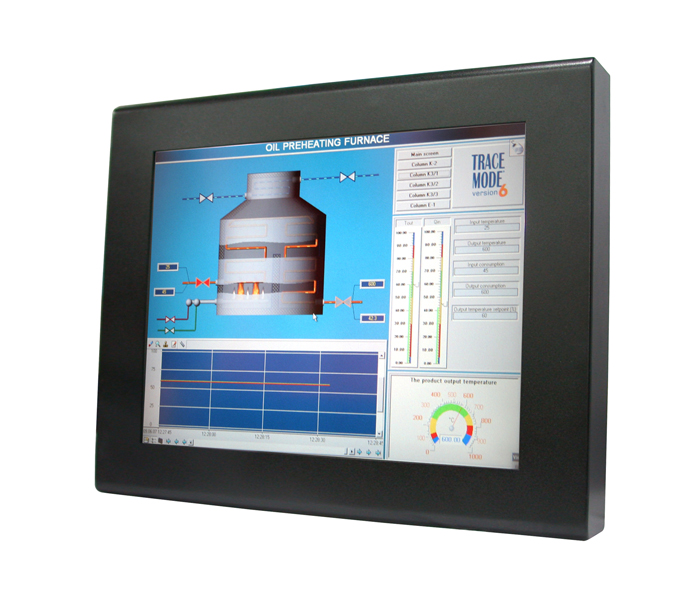

15” Intel N270 1.6GHZ Ultra Slim Fanless PPC

Features:

Ultra slim steel enclosure
Enhanced safety glass
Withstand vibration and rest-proof
15" TFT LCD display (400 nits)
Fanless and low-power consumption
Resistive touch screen (optional)
Wireless 802.11g LAN (optional)
Support VESA 75 mount
DC 11~28V wide-range power input
Specifications
System Specifications
CPU
Intel® Atom™ N270 1.6GHz Processor built-in, FSB533MHz
Chipset
Intel® 945GSE + ICH7M
Storage
1 x 2.5” SATA HDD ; 1 x Internal CF slot
Memory
1 x 200-pin SO-DIMM socket, support 533MHz up to 2GB SDRAM
OSD Controls/Indicators
2 x RJ-45 ports ; 4 x USB ports
1 x DB-9 RS-232 (COM 1)
1 x DB-9, COM2 (RS-232/422/485 selection, default RS-232)
1 x DB-15 VGA ; 1 x Audio MIC, Line-in, Line-out
1 x Power Switch (ATX) ; 1 x 3-pin DC Power input terminal
Expansion
No Expansion Slot
Touch screen
Analog resistive (optional)
Resolution
1024x768
LCD
15” TFT-LCD
Backlight Lifetime
50,000hrs
Luminance (cd/m2)
350
Fanless / Fan
Fanless
Mechanical Specifications
Construction
Steel front bezel and Aluminum extrusion back cover
Mounting Method/Ratings
Panel / VESA 75 x 75 Mount
Operating Temp.
0 - 50 ℃
Certifications
CE and FCC class A
Power Input
DC 11~32V
DimensionsShock
398(W)x316(H)x67(D)mm
Weight
9.61kgs
Data Sheet
Dimensions
