Products > APC-3580

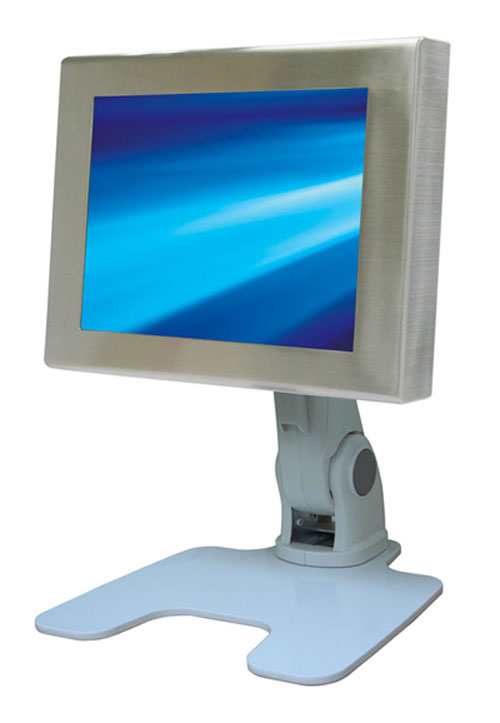

15" Ultra Slim Celeron M Stainless Steel
Fanless Panel PC

Features:

Ultra slim, sealed stainless steel enclosure
Enhanced safety glass or optional resistive
touch screen
Support Intel Celeron M 900MHz up to Pentium M
1.8GHz
Fanless and low-power consumption
TFT LCD display (400 nits)
Wireless 802.11g LAN (optional)
Withstand vibration and rust-proof
Support VESA 75 mount
DC 11~28V wide-range power input
                   About Aplex | News & Events | Products | Application | Service & Support | Global | Home
Copyright © 2005 - 2007  Aplex America, Inc.  All rights reserved.
Use of this  site indicates you accept the Terms of Use.
Products
Industrial Panel Computer Company
Providing the latest industrial product information and solutions
Specifications
System Specifications
CPU
Intel Celeron M 900MHz up to Pentium M 1.8GHz
Chipset
Intel 852GM + ICH4
Storage
Space for 1 x 2.5" HDD
Memory
1 x 200-pin DDR SO-DIMM
OSD Controls/Indicators
2 x COM ports, 4 x USB 2.0 ports, 1 x PS/2 keyboard &
mouse,1xAudio Mic, Line-in , Line-out, 1 x LAN, 1 x VGA
Expansion
No Expansion Slot
Touch screen
Analog resistive (optional)
Resolution
1024x768
LCD
15" XGA
Backlight Lifetime
50,000hrs
Luminance (cd/m2)
400
Fanless / Fan
Fanless
Mechanical Specifications
Construction
Stainless steel enclosure
Mounting Method/Ratings
VESA 75 / NEMA 4/ IP 65
Operating Temp.
0 - 50 C
Certifications
CE and FCC class A
Power Input
DC 11~28V
DimensionsShock
398(W) x 316(H) x 67(D) mm
Weight
6.5kgs
Data Sheet
Dimensions
