Products > APC-3562

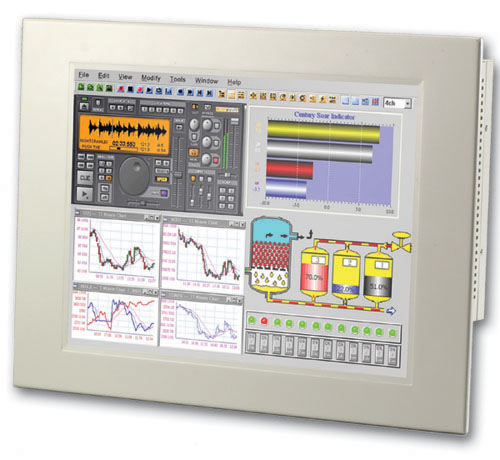

Intel Celeron M Industrial Panel PC with 15"
TFT LCD and 2 Expansion Slots

Features:

Front Panel NEMA 4 / IP 65 rating (panel-mount)
Fanless design & one Ethernet port
Resistive Touch screen (Optional)
Low noise and low power consumption
2 PCI expansion slots, 2 x USB 2.0 ports
DC 11~28V wide-range power input
Space for one 2.5" HDD and slim CD/DVD
Combo drive or otional CD-RW/DVD
                  About Aplex | News & Events | Products | Application | Service & Support | Global | Home
Copyright © 2005 - 2007  Aplex America, Inc.  All rights reserved.
Use of this  site indicates you accept the Terms of Use.
Products
Industrial Panel Computer Company
Providing the latest industrial product information and solutions
Specifications
System Specifications
CPU
Intel® Celeron® M  600MHz
Chipset
Intel® 852GM + ICH 4
Memory
up to 1GB DDR SDRAM
DRAM Socket
1 x 200-pin SO-DIMM
Storage
Space for 1 x 2.5" HDD and 1x slim CD/DVD/Combo drive
BIOS
Phoenix-Award 2MB PnP BIOS
OSD Controls/Indicators
4 x COM ports, 1 x Parallel port,  1 x PS/2 keyboard and mouse
ports, 6 x USB 2.0 (4 by pin header), 1x LAN, 1 x VGA, 1 x DVI,
1xAudio Mic, Line-in, Line-out
IDE Interface
UDMA 33 / 66 / 100 x 2
Touch screen
Analog resistive (optional)
Expansion Slots
2 x PCI Slots
LCD
15" XGA 1024x768
Backlight Lifetime
50,000hrs
Luminance (cd/m2)
400
Fanless / Fan
Fan
Mechanical Specifications
Construction
Heavy-duty steel chassis
Front Panel Color
Beige
Mounting Method
Panel Mount
Operating Temp.
0 - 50 C
Storage Temp.
-10C - 75C
Vibration
5 - 17 Hz, 0.1" double amplitude displacement,
17 - 640 Hz, 1.5G acceleration peak to peak
Shock
10G acceleration peak to peak (11ms)
Certifications
CE and FCC class A
Power Input
DC 11~28V
DimensionsShock
410(W) x 310(H) x 106(D)mm
Weight
6.45kgs
Data Sheet
Dimensions
