Products > APC-3281

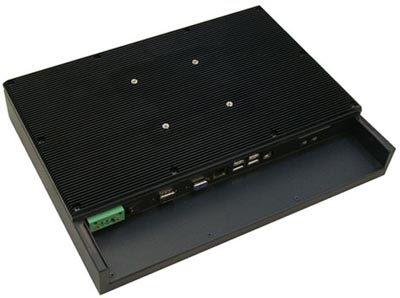

12" Ultra Slim Celeron M Stainless Steel
Fanless Panel PC

Features:

Ultra slim, sealed stainless steel enclosure
Supports Intel Celeron M 1GHz up to Pentium M
1.8GHz
IP65 Compliant except I/O side
Fanless and low-power consumption
12" TFT LCD display (300 nits)
Wireless 802.11g LAN (optional)
Support VESA 75 mount
DC 11~28V wide-range power input
Specifications
System Specifications
CPU
Intel Celeron M 1GHz up to Pentium M 1.8GHz
LAN
1 x LAN (10/100base-T)
Storage
Space for 1 x 2.5" HDD
Memory
200 pin-DDR SO DIMM up to 1GB
OSD Controls/Indicators
1 x COM port, 4 x USB 2.0, 1 x PS/2 keyboard & mouse ports
1 x Audio Mic, Line-in, Line-out, 1 x Parallel port,
1 x VGA, 1 x DVI
Expansion
No Expansion Slot
Touch screen
Analog resistive (optional)
Resolution
800x600
LCD
12.1" SVGA
Backlight Lifetime
50,000hrs
Luminance (cd/m2)
300
Fanless / Fan
Fanless
Mechanical Specifications
Construction
Black color of steel enclosure
Mounting Method/Ratings
VESA 75 / NEMA 4/ IP 65
Operating Temp.
0 - 50 C
Certifications
CE and FCC class A
Power Input
DC 11~28V
DimensionsShock
330(W) x 260(H) x 59(D) mm
Weight
5.1kgs
Data Sheet
Dimensions
