Products > APC-3212

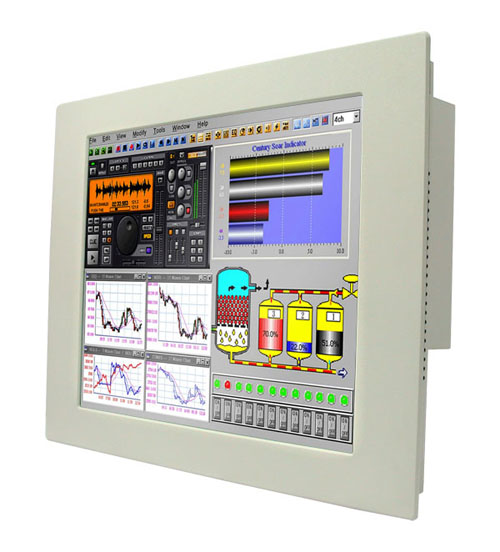

12.1" Fanless TFT LCD Panel PC

Features:

Intel Celeron M 1.5GHz  up to Pentium M 1.8GHz
CPU
NEMA 4/IP 65 compliant front bezel
2 x PCI expansion slots
2 x COM ports and 4 x USB 2.0 ports
Space for 2.5" HDD and slim CD-ROM
Resistive touch screen (optional)
Support Panel mount
AC 11~28V wide-range power input
Specifications
System Specifications
CPU
Intel Celeron M 1.5GHz up to  Pentium M 1.8GHz
Serial ports
2 x COM ports
Storage
Space for 1 x 2.5" HDD and 1 x slim CD-ROM
Memory
1 DDR slot supporting up to 1GB SDRAM
USB ports
4 x USB 2.0 ports
LAN
Realtek 8100BL LAN Controller (10/100Mb)
I/O ports
1xAudio Mic, Line-in , Line-out
Resolution
800x600
LCD
12.1" SVGA
Backlight Lifetime
50,000hrs
Luminance (cd/m2)
300
LPT
1 x bi-directional parallel port supporting SPP/EPP/ECP parallel
mode
Fanless / Fan
Fanless
Data Sheet
Dimensions
Mechanical Specifications
Construction
Heavy-duty steel chassis, Stainless steel front bezel (optional for
15"/17"/19")
Mounting Method/Ratings
NEMA 4/ IP 65
Operating Temp.
0 - 50 C
Storage Temp.
0 - 60C
Relative Humidty
5-85% @40 C (non-condensing)
Vibration
5-500Hz, 1G RMS random vibration
Shock
10G acceleration peak to peak (11ms)
Certifications
CE and FCC class A
Power Input
DC 11~28V
DimensionsShock
390(W) x 265(H) x 127(D)mm
Weight
