Products > AHM-6151

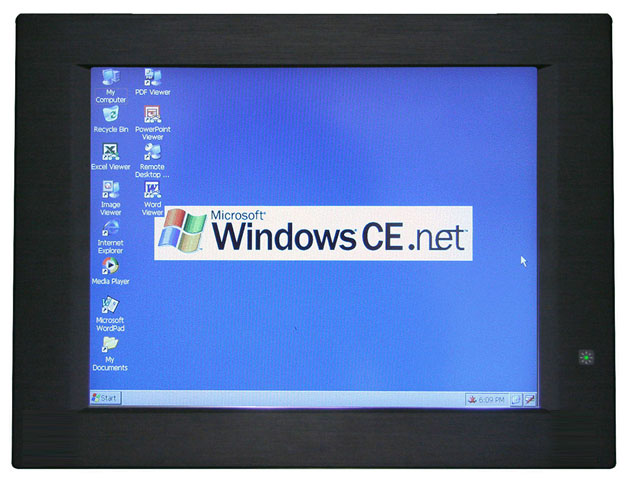

15" RISC-based Human Machine Interface

Features:

Fanless and low-power consumption
Intel Xscale PXA255 400MHz CPU
15" XGA color TFT LCD
Onboard with DRAM, Flash and SRAM memory
bank
SMI SM501 Companion Chip supporting dual
display
NEMA 4/IP65 compliant front panel
Win. CE net 4.2 / 5.0 OS support
Supports one Compact Flash card slot
                  About Aplex | News & Events | Products | Application | Service & Support | Global | Home
Copyright © 2005 - 2007  Aplex America, Inc.  All rights reserved.
Use of this  site indicates you accept the Terms of Use.
Products
Industrial Panel Computer Company
Providing the latest industrial product information and solutions
Specifications
Display Specifications
Display
15" XGA TFT LCD
Luminance
350 cd/m2
Viewing Angle
150 0(L/R)  125 0 (U/D)
Resolution
1024x768
Backlight
50,000 hrs
General Specifications
Construction
Plastic molding front panel and metal housing
Front Panel Color
Black
CPU
Intel Xscale PXA255, 400MHz
Touch Screen
4-wire analog resistive
Power Input
DC 10.8~28V
I/O Connectors
COM1 (RS-232/422/485) COM2 (RS-232)
PS/2 port: 1 x keyboard, 1 x mouse
USB Client 1.1 and Host 1.1
Ethernet port , 1 x CF slot
Speaker out x 1 / Min-in x 1  ,  External VGA port
Memory Bank
128MB DRAM
1MB SRAM with battery backup
32MB Flash for operating system
CF slot for application software
Weight
7.18kgs
Dimensions
409(W) x 56(D) x 309mm(H)
Environment Specifications
Operating Temperature
0 - 50 'C
Storage Temperature
-20 - 60 'C
Relative Humidity
10-90% @ 60 'C Non-condensing
Vibration
5 - 17Hz, 0.1" double amplitude displacement
17 - 640Hz, 1.5G acceleration peak to peak
Shock
10 to 25Hz (X,Y,Z direction 2G, 30 minutes)
Rating
NEMA 4/IP 65 compliant front panel
Certification
FCC, CE Class A certified
Data Sheet
Dimensions
