Products > AHM-6085

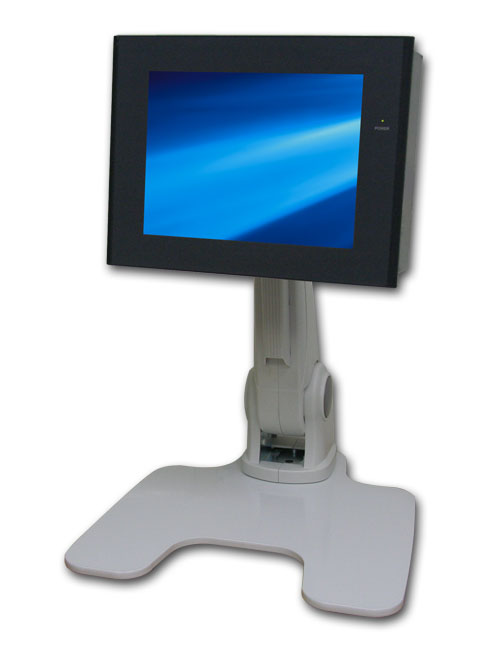

8" Industrial Fanless Touch Panel PC

Features:

8" High Brightness TFT LCD (400 cd/m2)
with resolution of  800x600
Intel Celeron M 1GHz processor
1 x SO-DIMM DDR memory socket, up to 1GB
DC 11~28V wide-range power input
NEMA 4/IP65 compliant front panel
Sealed resistive touch screen
Support Panel / VESA 75 mount
One GbE Ethernet port
                   About Aplex | News & Events | Products | Application | Service & Support | Global | Home
Copyright © 2005 - 2007  Aplex America, Inc.  All rights reserved.
Use of this  site indicates you accept the Terms of Use.
Products
Industrial Panel Computer Company
Providing the latest industrial product information and solutions
Specifications
Display Specifications
Display
8" SVGA TFT LCD
Luminance
400 cd/m2
Viewing Angle
130°  (L/R)
Resolution & Max. colors
800 x 600 & 262K


General Specifications
Construction
Aluminum alloy front panel and metal housing
Front Panel Color
Black
CPU
Intel Celeron M 1GHz
DRAM
256MB (1 x SO-DIMM DDR Socket) up to 1GB
Storage
Space for 2.5" HDD and 1 CF card slot, or 1 Compact Flash card
slot
I/O Connectors
2 x serial ports (COM1：RS-232, COM2：RS-232/422/485)
1 x Ethernet port (10/100 Base-T)
2 x USB 1.1
1 x parallel port
1 x Stereo audio Mic-in, line-in and Line-out
1 x PS/2 keyboard & mouse
Touch Screen
4-wire ,analog resistive
Weight
2.58kgs
Power Input
DC 11~28V
Dimensions
231(W) x 75(D) x 176mm(H)
Environment Specifications
Operating Temperature
0 - 50 'C
Storage Temperature
-20 - 60 'C
Relative Humidity
10-90% @ 50 'C Non-condensing
Vibration
5 - 17Hz, 0.1" double amplitude displacement
17 - 640Hz, 1.5G acceleration peak to peak
Shock
10 to 25Hz (X,Y,Z direction 2G, 30 minutes)
Rate
NEMA 4/IP65 compliant front panel
Certification
FCC, CE Class A certified
Data Sheet
Dimensions
