Products > AHM-6081

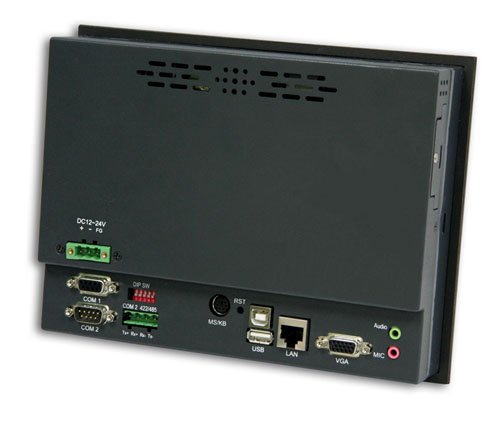

8" RISC-based Human Machine Interface

Features:

Fanless ARM 9 based Intel Xscale PXA255 CPU
8" SVGA color TFT LCD
Onboard with DRAM, Flash and SRAM memory
bank
SMI SM501 Companion Chip supporting dual
display
Supports one Compact Flash card slot
NEMA 4/IP65 compliant front panel
One Ethernet Port 10/100 base-T supported
USB 1.1 host and 1.1 client supported
Win. CE net 4.2 / 5.0 OS support
                    About Aplex | News & Events | Products | Application | Service & Support | Global | Home
Copyright © 2005 - 2007  Aplex America, Inc.  All rights reserved.
Use of this  site indicates you accept the Terms of Use.
Products
Industrial Panel Computer Company
Providing the latest industrial product information and solutions
Specifications
Display Specifications
Display
8" SVGA TFT LCD
Luminance
400 cd/m2
Viewing Angle
130°  (R/L)
Resolution
800 x 600
Backlight
40,000 hrs
General Specifications
Construction
Plastic molding housing
Front Panel Color
Black
CPU
Intel Xscale PXA255, 400MHz
Touch Screen
4-wire analog resistive
Power Input
DC 11~28V
I/O Connectors
COM1 (RS-232/422/485)
COM2 (RS-232)
PS/2 port for keyboard or mouse
USB Client 1.1 and Host 1.1
1xEthernet port
1xExternal VGA port
Speaker out x 1/Mic-in x 1
CF slot
Memory Bank
128MB DRAM / 1MB SRAM with battery backup
32MB Flash for operating system
CF slot for application software
Weight
1.4kg/3.09 lbs
Dimensions
231(W) x 57(D) x 176mm(H)
Environment Specifications
Operating Temperature
0 - 50 'C
Storage Temperature
-20 - 70 'C
Relative Humidity
10-90% @ 50 'C Non-condensing
Vibration
5 - 17Hz, 0.1" double amplitude displacement
17 - 640Hz, 1.5G acceleration peak to peak
Shock
10 to 25Hz (X,Y,Z direction 2G, 30 minutes)
Rating
NEMA 4/IP 65 compliant front panel
Certification
FCC, CE Class A certified
Data Sheet
Dimensions
