Products > Display Monitors > ADP-1101

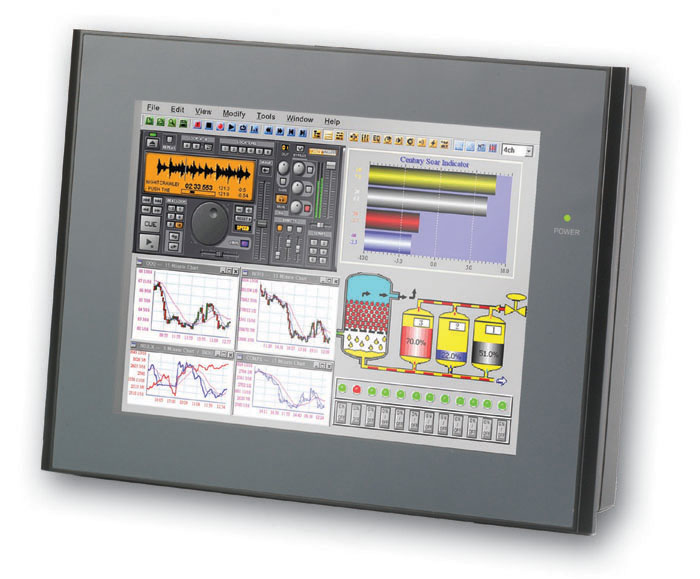

10.4" Color TFT Industrial Display Monitor

Features:

10.4" SVGA color TFT LCD display
Heavy-duty steel chassis
Plastic front panel is IP65-certified
OSD on the rear side
Analog resistive touch screen
Analog RGB signal direct input offering
multi-scan function
                    About Aplex | News & Events | Products | Application | Service & Support | Global | Home
Copyright © 2005 - 2007  Aplex America, Inc.  All rights reserved.
Use of this  site indicates you accept the
Terms of Use.
Products
Industrial Panel Computer Company
Providing the latest industrial product information and solutions
Specifications
Display Specifications
Display
10.4" Color Active TFT Flat Panel Display
Luminance
250 cd/m2
Viewing Angle
130/110 degrees (H/V)
Resolution
800 x 600, 256K colors
Backlight
20,000 hrs
Touch Screen
Analog, resistive
OSD Controls/Indicators
On the rear side
Power Input
DC 11~28V
OS Compatibility
Win 95/98, XP, 2000, NT 4.0, QNX, Linux
Mechanical Specifications
Construction
Heavy-duty steel chassis with plastic front bezel
Dimensions
317 (W) x 243 (H) x 43.5 mm (D)
Mounting
Panel Mount / VESA 75 Mount
Environment Specifications
Operating Temperature
0-45 'C (32~113 'F)
Storage Temperature
-20 - 60 'C (-4 ~ 140 'F)
Relative Humidity
10-90% @40 'C Non-condensing, without touch screen
Vibration
1G peak, 5~500 Hz (Random)
Shock
30G peak acceleration (11 msec, duration)
Rating
NEMA 4/IP65
Certification
FCC, CE Class A certified
Data Sheet
Dimensions
