Products > Display Monitors > ADP-1080

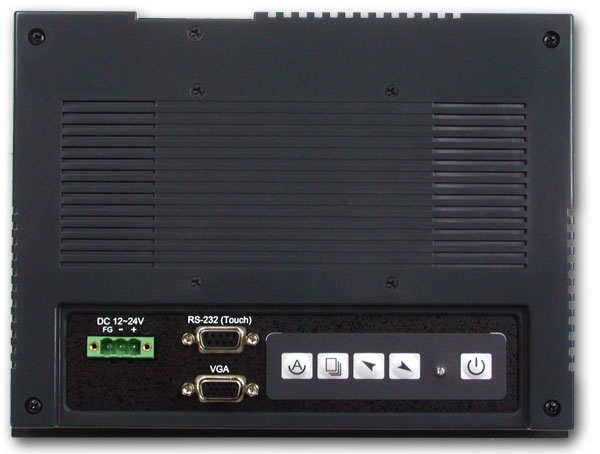

8" Color TFT Industrial Display Monitor

Features:

8" TFT SVGA LCD
800 x 600 (native mode), 400 cd/m2
Front Panel NEMA 4/IP 65 rating
Support Panel / VESA 75 mount
Resistive touch screen (anti-glare)
Backlight life of 40,000 hours
OSD control
DC 11~28V wide-range power input
Viewing Angle: 130 (H), 100 degrees(V)
                    About Aplex | News & Events | Products | Application | Service & Support | Global | Home
Copyright © 2005 - 2007  Aplex America, Inc.  All rights reserved.
Use of this  site indicates you accept the Terms of Use.
Products
Industrial Panel Computer Company
Providing the latest industrial product information and solutions
Specifications
Display Specifications
Display
8" Color Active TFT Flat Panel Display
Luminance
400 cd/m2
Viewing Angle
130 (H/V)
Resolution
800 x 600 (native mode), 262K colors
Backlight
40,000 hrs
Touch Screen
Resistive Antiglare
OSD Controls/Indicators
Automatic Screen, Setup (OSD), Brightness, Contrast,
Horizontal/Vertical Position, Image Lock, Color Balance, Video
Information, Power On and Sync Detection
Power Input
 DC 11~28V
OS Compatibility
 Win 95/98, XP, 2000, NT 4.0, QNX, Linux
Mechanical Specifications
Construction
Plastic Housing, Sealed Touch Screen
Dimensions
230 (W) x 175 (H) x 55 mm (D)
Mounting
Panel Mount / VESA 75 Mount
Environment Specifications
Operating Temperature
0-50 'C (32~122 'F)
Storage Temperature
-20 - 60 'C (-4 ~ 140 'F)
Relative Humidity
10-90% @40 'C Non-condensing, without touch screen
Vibration
1G peak, 5~500 Hz (Random)
Shock
15G peak acceleration (11 msec, duration)
Rating
NEMA 4/IP65
Certification
FCC, CE Class A certified
Data Sheet
Dimensions
