Products > ADO-6050 (NEW)

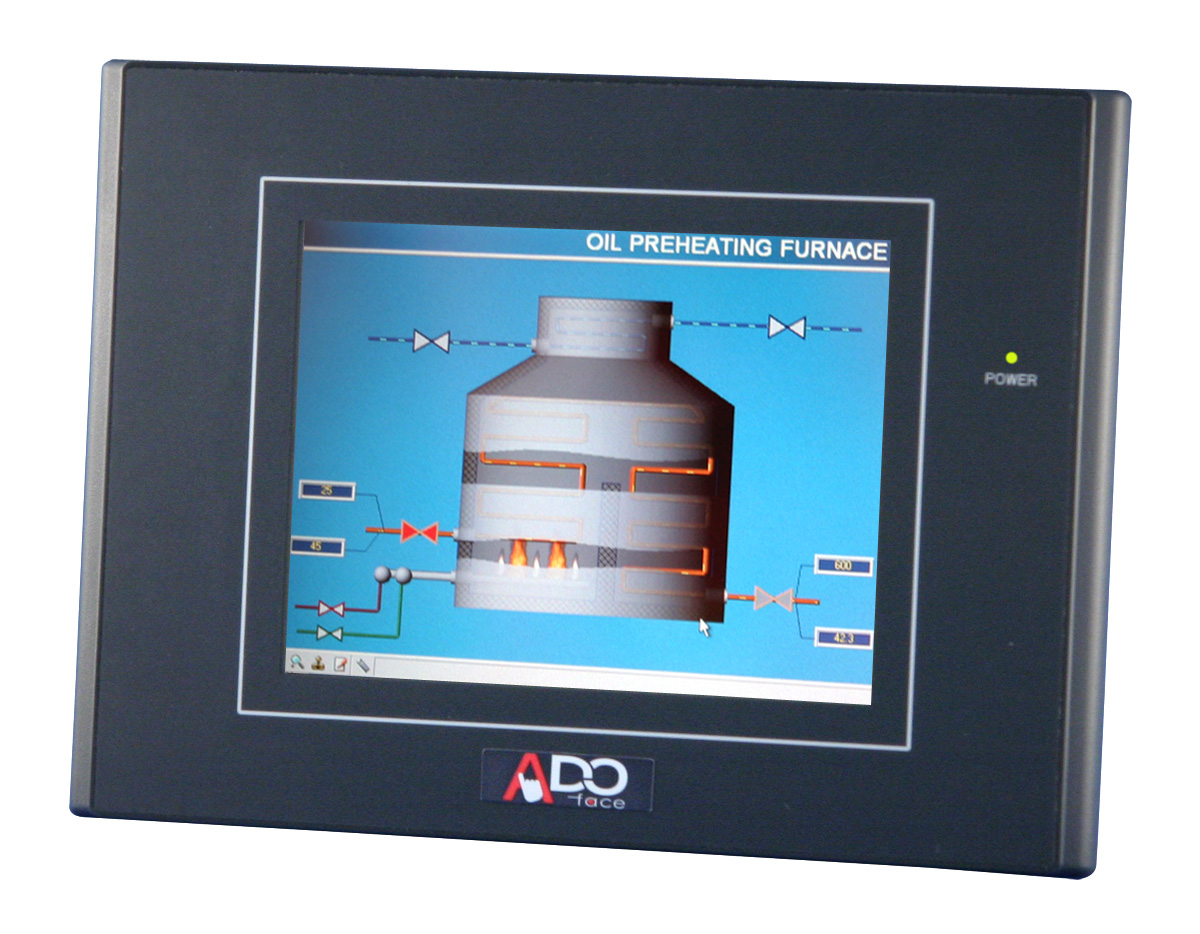

5.7" Fanless Touch Panel Computer

Features:

5.7" High Brightness TFT LCD with resolution of
320x240
Samsung S3C2410 ARM-9 203MHz processor
Sealed resistive touch screen
One SD slot (Optional, Default: None)
Supports panel mount
DC 24v power mount
                   About Aplex | News & Events | Products | Application | Service & Support | Global | Home
Copyright © 2005 - 2007  Aplex America, Inc.  All rights reserved.
Use of this  site indicates you accept the
Terms of Use.
Products
Industrial Panel Computer Company
Providing the latest industrial product information and solutions
Specifications
Display Specifications
Display
5.7" QVGA
Luminance
500 cd/m2
Viewing Angle
Horizontal 60/60, Vertical 50/40
Resolution
320x240
Backlight
45,000 hrs
General Specifications
Construction
Plastic molding housing
Front Panel Color
Black
CPU
Samsung S3C2410 ARM-9 203MHz; 32MB system DRAM
Touch Screen
4-wire analog resistive
Power Input
DC 24V

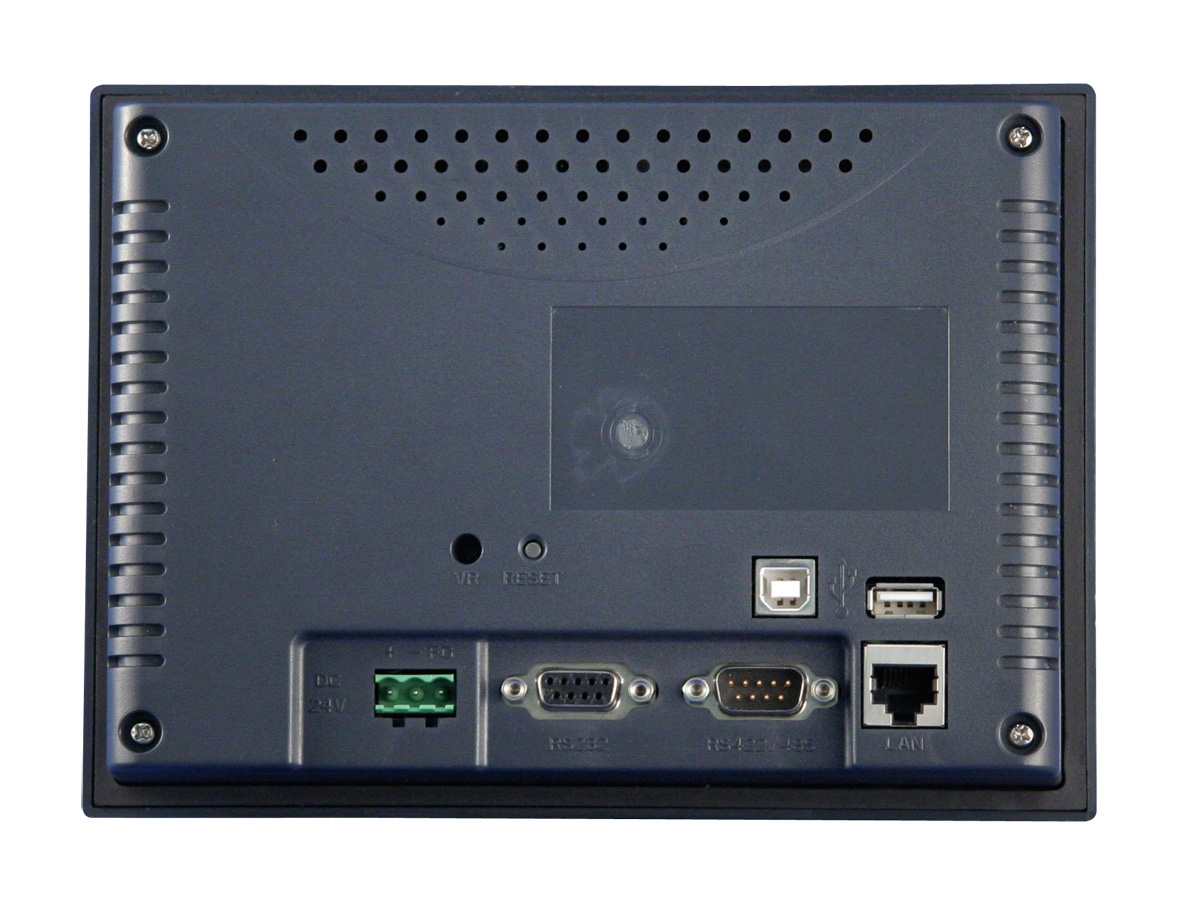

I/O Connectors
1 x RS-232, 1 x RS-232/422/485
2 x  USB 2.0 (Host + Clinet)
1 x LAN port (Ethernet, RJ-45 support 10/100Mbps Base-T)
Weight
1.0kgs
Dimensions
204(W) x 149(H) x 46(D)mm
Environment Specifications
Operating Temperature
0 - 50 'C
Storage Temperature
20 - 60 'C
Relative Humidity
10 - 90% @40 ℃, non-condensing
Vibration
5~17Hz, 0.1" double amplitude displacement,
17~640Hz, 1.5G acceleration peak to peak
Mounting
Panel mount
Rating
NEMA 4/IP 65 compliant front panel
Certification
Meet FCC, CE Class A certified
Data Sheet
Dimensions
