Products>  > > ACS-2634 (NEW)

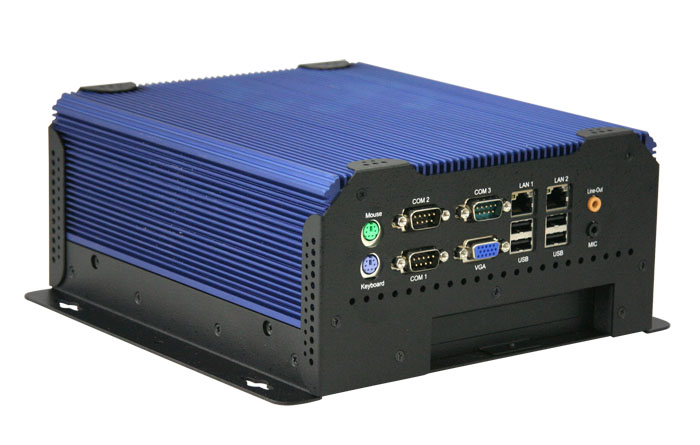

Alu. Cover Heatsink Engine Box with 1 x PCI
slot

Features:

Fanless design
Intel Celeron M 1.6GHz up to Pentium M 1.8GHz
Dual LAN, 3 x COM ports, 4 x USB ports
Space for 2.5" slim type HDD and 1 CF card slot
One PCI expansion slot
DC 11~28V wide-range power input
                  About Aplex | News & Events | Products | Application | Service & Support | Global | Home
Copyright © 2005 - 2007  Aplex America, Inc.  All rights reserved.
Use of this  site indicates you accept the
Terms of Use.
Products
Industrial Panel Computer Company
Providing the latest industrial product information and solutions
Specifications
System Specifications
CPU
Intel Celeron M 1.6GHz up to Pentium M 1.8GHz
System Chipset
Intel 82852GM+ICH4
Memory
1x184-pins DDR DIMM up to 1GB
Storage
Space for 1 x 2.5" HDD ,1 CF socket (optional)
Expansion
1 x PCI slot
Serial Port
3 x RS-232 (COM1~2)
Parallel Port
1 x SPP/EPP/ECP mode (optional)
USB Port
2 x USB 2.0 compliance
Watchdog Timer
Generates system reset; 256 levels
Keyboard & Mouse
1 x PS/2 keyboard & mouse
Audio
Line-out, Mic
LAN
2 x 10/100
VGA
Intel 852GM+ICH4
Mechanical Specifications
Operating Temperature
0 C to 60 C
Storage Temperature
0 C to 80 C
Power Input
DC 11~28V
Dimensions
240(W) x 230(D) x 104(H)mm
Weight
6kgs
Certifications
CE and FCC class A
Data Sheet
Dimensions
