Products>  > > ACS-2633 (NEW)

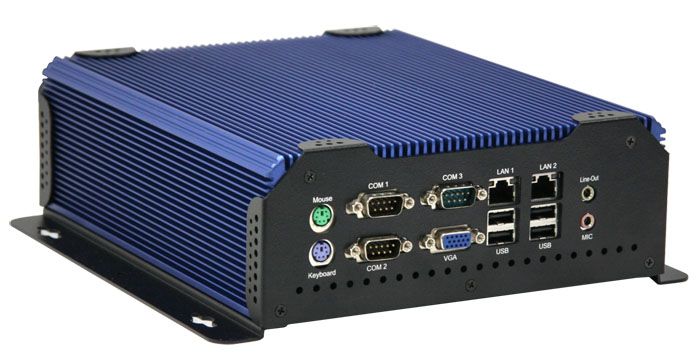

Alu. Cover Heatsink Engine Box

Features:

Socket 479 Support Intel Celeron M up to
Pentium M 1.8GHz
Fanless design
Intel 852GM Graphic Memory Controller Hub
(GMCH)
1 x 184-pin DDR DIMM 266/333MHz up to 1GB
Space for 1 x 2.5" slim HDD and 1 x compact flash
DC 12V power input
                  About Aplex | News & Events | Products | Application | Service & Support | Global | Home
Copyright © 2005 - 2007  Aplex America, Inc.  All rights reserved.
Use of this  site indicates you accept the
Terms of Use.
Products
Industrial Panel Computer Company
Providing the latest industrial product information and solutions
Specifications
System Specifications
CPU
Socket 479 for Intel Celeron M 400MHz up to Pentium M 1.8GHz
System Chipset
Intel 852GME+ICH4
Memory
1 x 184-pin DDR DIMM 266/333MHz up to 1GB
Storage
Space for 1 x 2.5" slim HDD and 1 x compact flash
Expansion
No PCI slot
Serial Port
3 x COM (RS-232)
Parallel Port
1 x SPP/EPP/ECP mode (optional)
USB Port
4 x USB 2.0
Watchdog Timer
Generates system reset; 256 levels
Keyboard & Mouse
PS/2 keyboard & mouse
Audio
Line-out, Mic
LAN
2 x RJ45 LAN
VGA
Intel 852GM GMCH
Mechanical Specifications
Operating Temperature
0 C to 60 C
Storage Temperature
0 C to 80 C
Power Input
DC 12V
Dimensions
240(W) x 230(D) x 80(H)mm
Construction
Aluminum Molding & Heavy-duty steel chassis
Certifications
CE and FCC class A
Data Sheet
Dimensions
