Products>  > > ACS-2630

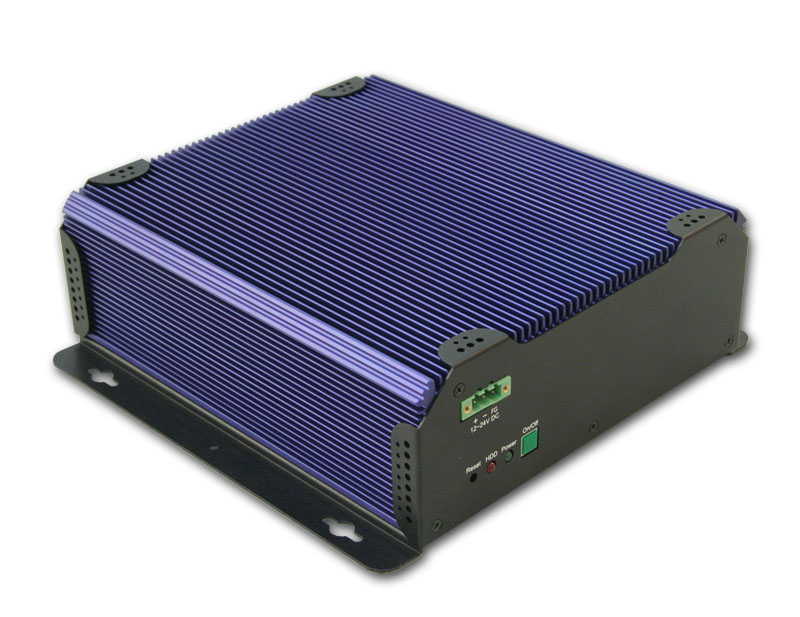

Fanless Intel Celeron M 600MHz Box PC

Features:

Fanless design
Intel Celeron M 600MHz CPU
Intel 852GM + ICH4
1 x 2.5" anti-Vibration HDD (optional CF only)
Stand-alone with wall-mount kit support
DC 11~28V wide-range power input
                  About Aplex | News & Events | Products | Application | Service & Support | Global | Home
Copyright © 2005 - 2007  Aplex America, Inc.  All rights reserved.
Use of this  site indicates you accept the
Terms of Use.
Products
Industrial Panel Computer Company
Providing the latest industrial product information and solutions
Specifications
System Specifications
CPU
Intel Celeron M 600 MHz
System Chipset
Intel 855GME+ICH4
Memory
1x DDR266 SO-DIMM SDRAM Max 1GB
Storage
Space for 1 x 2.5" anti-vibration slim HDD (optional CF only)
BIOS
Award Flash
Serial Port
3 x COM ports
Parallel Port
1 x SPP/EPP/ECP mode (optional)
USB Port
2 x USB 2.0 compliance
Watchdog Timer
Generates system reset; 256 levels
Keyboard & Mouse
1 x PS/2 keyboard & mouse
Audio
1 x Audio Mic, Line-in ,Line-out
LAN
1 x 10/100MB
VGA
Intel 852GM+ICH4
Mechanical Specifications
Operating Temperature
0 C to 60 C
Storage Temperature
-20 C to 80 C
Power Input
DC 11~28V
Dimensions
229.5(W) x 73.7(D) x 221(H)mm
Weight
5kgs/11 lbs
Certifications
CE and FCC class A
Data Sheet
Dimensions
