Products>  > > ACS-2623

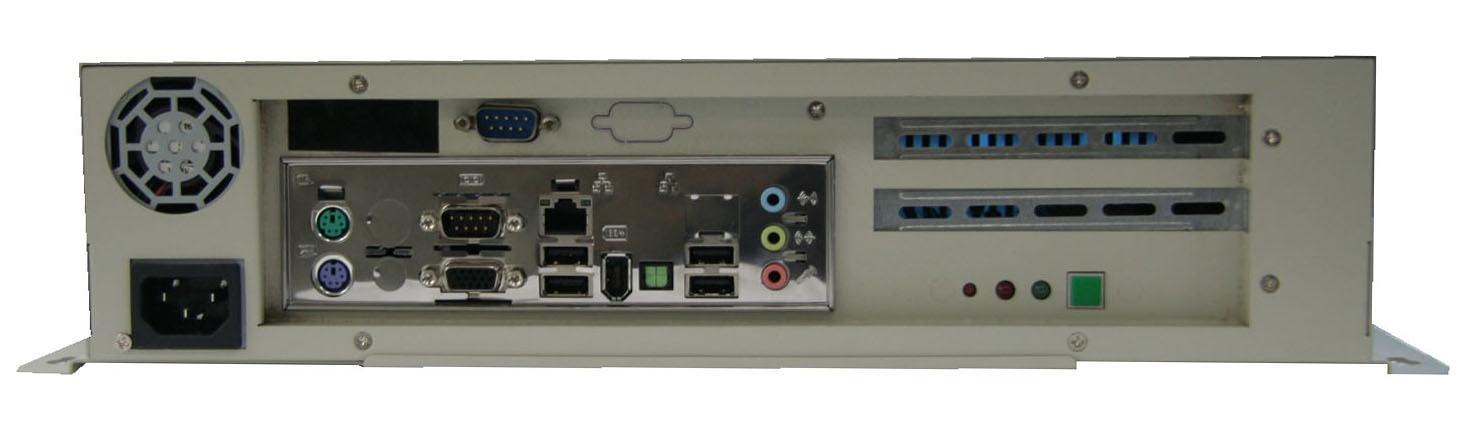

Intel Pentium M/Celeron M Stand-alone
Box PC

Features:

Intel Celeron M 1.5Ghz up to Pentium M
Intel 855GME+ICH4
2 x PCI expansion slots
VGA and DVI support dual display
Space for 2.5" HDD, 1 CF card slot and 1
slim CD-ROM
2 COM ports,DVI, VGA,printer
Standalone with wall-mount kit support
                   About Aplex | News & Events | Products | Application | Service & Support | Global | Home
Copyright © 2005 - 2007  Aplex America, Inc.  All rights reserved.
Use of this  site indicates you accept the Terms of Use.
Products
Industrial Panel Computer Company
Providing the latest industrial product information and solutions
Specifications
System Specifications
CPU
Intel Celeron M 1.5GHz up to Pentium M 1.8GHz
System Chipset
Intel 855GME+ICH4
Memory
1 DDR slot supporting up to 1GB SDRAM
Storage
Space for 2.5" HDD, 1 CF card slot and 1 slim CD-ROM
BIOS
Award BIOS, ACPI supported
Serial Port
2 x COM port
Parallel Port
1 x SPP/EPP/ECP mode
USB Port
4 x USB 2.0 compliance (2 by pin-header)
Expansion slots
2 x PCI slots
Keyboard & Mouse
1 x PS/2 keyboard & mouse
Audio
1 x Audio Mic, Line-in ,Line-out
LAN
1 x 10/100MB
VGA & DVI
1 x VGA, 1 x DVI
Mechanical Specifications
Operating Temperature
0 C to 60 C
Storage Temperature
-20 C to 80 C
Power Input
AC 100~240V
Dimensions
410(W) x 105(D) x 212.5(H)mm
Weight
5kgs/11 lbs
Certifications
CE and FCC class A
Construction
Steel
Data Sheet
Dimensions
